3 Inch Astro Van Style Body Side Molding Dark Silver W/Chrome 20 Ft Roll.

3 inch Astro Van Style Body Side Molding Dark Silver w/Chrome 20 Ft Roll.

Click to zoom image [+]

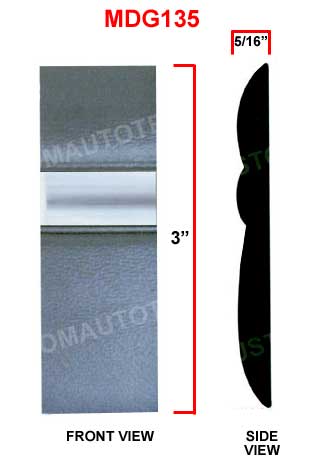

MDG135

Part# MDG135
  • Width: 3 inches tall
  • Style: Chevrolet Astro Style
  • Length: 20 Ft Roll
  • End Type: Standard Ends
  • Thickness: 5/16 inch

  • Material: OEM approved Vinyl with 3M adhesive tape
img July 10 2025

Trim molding replicates the Chevy Astro Van Factory Body Side Molding.

Provides body trim protection from dings and chips in a Factory-type, finished look. Truck Side Molding Trim Kit comes packaged as a roll. This vinyl side trim is styled after the Astro and Safari Van factory body side molding. Slim, stylish profile, this attractive kit has enough molding to trim any truck or van.

Side molding is backed with 3M automotive adhesive. Just peel and stick above or below body line in between wheel wells. Cuts easily with straight blade garden shears - no need for end caps.

Please Select an Option Below:


Reg: $ 173.03

Sale: $138.42

Please Select an Accessory Below:


  MOLDING CUTTER  2 inch Blade
Reg.: $13.99
  MOLDING CUTTER  4 inch Blade w/Refills
Reg.: $29.99
  Adhesive Promoter Pen
Reg.: $15.00
Sale:$12.99
  Add Accessory only

    AUTOMEGA® Body Side Moldings Installation Demo

    1. moldings-img
      moldings-img
      moldings-img
      moldings-img

      Once you have properly prepared the surface and set down your masking tape guideline, apply adhesive promoter to the vehicle surface where it will make contact with the molding. This will increase the bond of the adhesive as the molding gets pressed into place.

    2. moldings-img
      moldings-img
      moldings-img
      moldings-img

      Peel back the red liner of the roll of molding about 18 inches to expose the adhesive so you can work one section at a time. Position the molding right below the masking tape, using it as a guideline.

    3. moldings-img
      moldings-img
      moldings-img
      moldings-img

      Push the end of the molding down with the back of your hand to set in place. Then continue to press down, sliding along with the palm of your hand using medium pressure .

    4. moldings-img
      moldings-img
      moldings-img
      moldings-img

      When you come to the door break, cut the molding with a straight blade shear just short of the door edge. Continue applying the molding on the quarter panel; when you get close to the wheel well, cut the molding at an angle to match the wheel well opening.

    5. moldings-img
      moldings-img
      moldings-img
      moldings-img

      Go back and press down using very firm pressure, sliding along with a soft cloth to protect your hand. Continue this process again a second time using more pressure. (You can also use a rubber roller tool for this process). Finally, remove masking tape guideline.

    6. moldings-img
      moldings-img

      This is an example of a finished install using our 1 ½ inch Body Side Molding MDG117.
